WalletConnect Pay via WalletKit - React Native

Integrate WalletConnect Pay through WalletKit for a unified payment experience in your React Native wallet.

This documentation covers integrating WalletConnect Pay through WalletKit for React Native wallets. This approach provides a unified API where Pay is built into WalletKit, simplifying the integration for wallet developers.

Sample Wallet

For a complete working example, check out our sample wallet implementation:

Sample Wallet - React Native (WalletKit)

A reference React Native wallet app demonstrating WalletConnect Pay via WalletKit.

Using AI for Integration? If you’re using an AI IDE or assistant to help with integration, you can provide it with our comprehensive AI integration prompt for better context and guidance.

Requirements

• Node.js 16+
• WalletKit (@reown/walletkit)

You also need a WCP ID for your project, obtained from the WalletConnect Dashboard.

How to obtain a WCP ID

1. Navigate to the WalletConnect Dashboard.

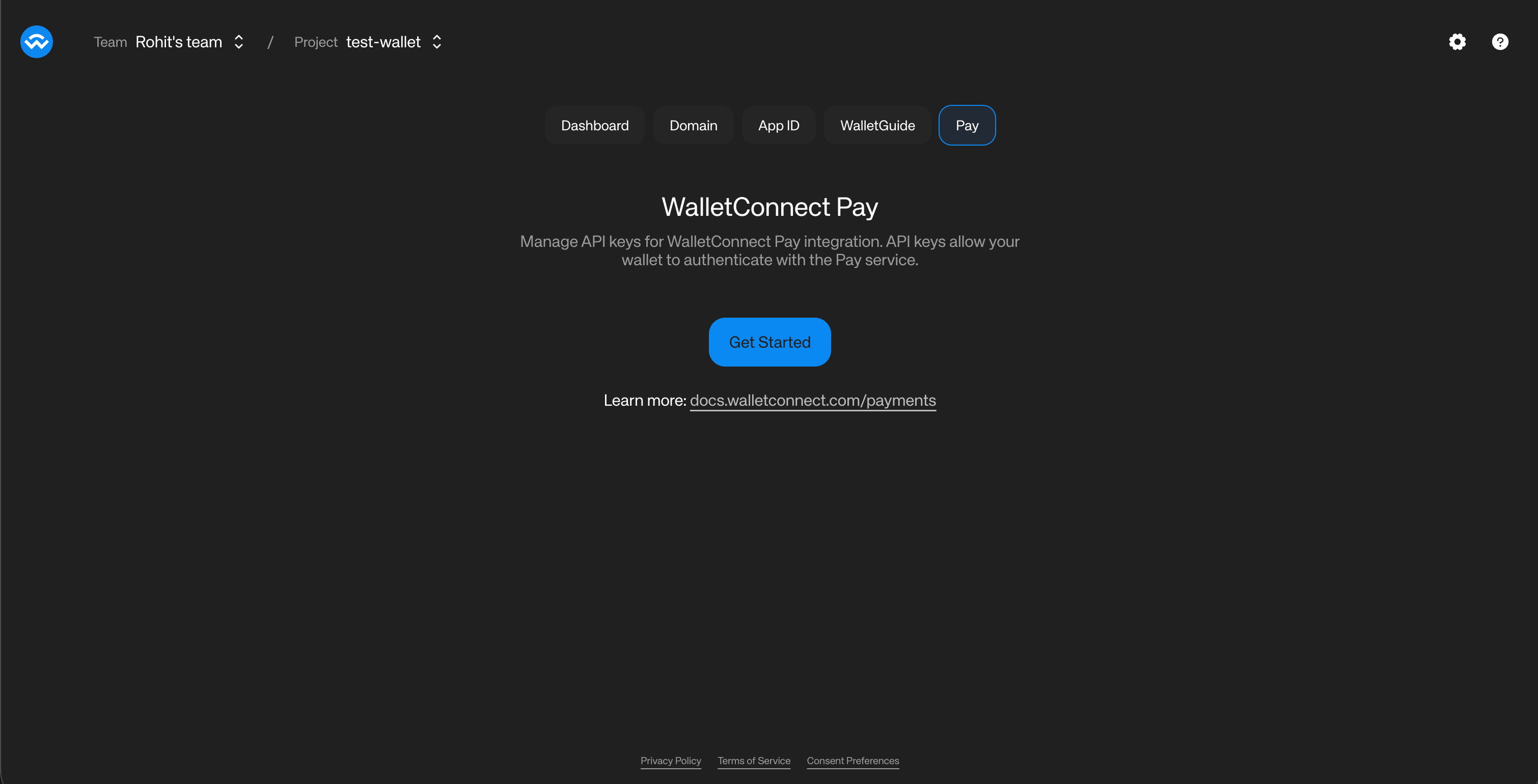

2. Select the project that is associated with your wallet (as in, the projectId that is being used for your wallet’s WalletConnect integration).

3. Click on the “Get Started” button to get a WCP ID associated with your project.

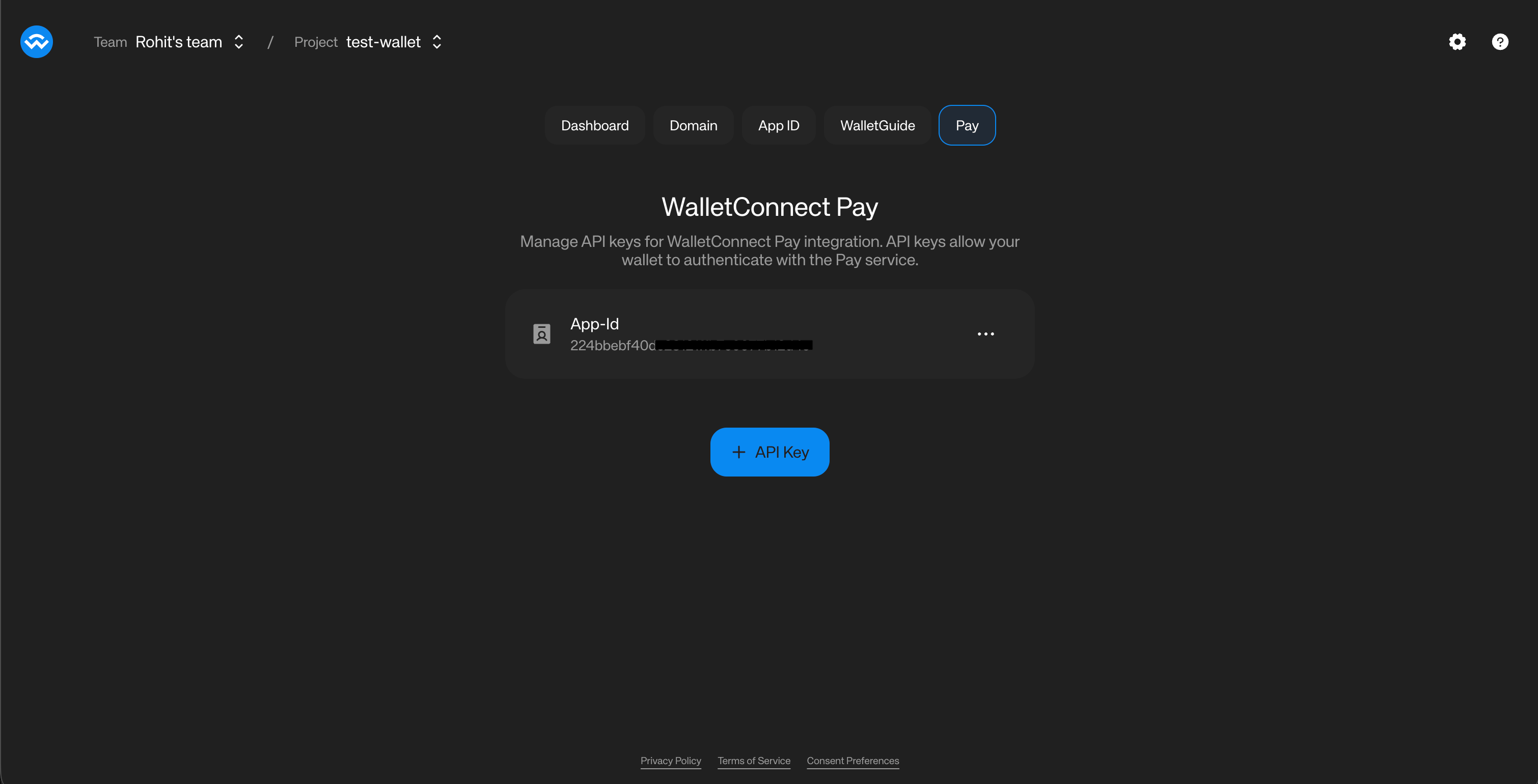

4. The Dashboard will now show the WCP ID associated with your project.
5. Click on the three dots on the right of the WCP ID and select “Copy WCP ID”. You will be using this for your wallet’s WalletConnect Pay integration.

Installation

Install WalletKit using npm or yarn:

npm

npm install @reown/walletkit @walletconnect/core

yarn

yarn add @reown/walletkit @walletconnect/core

WalletConnect Pay is automatically included as part of WalletKit.

Check the npm page for the latest version.

Initialization

Initialize WalletKit as usual. Pay functionality is automatically available:

import { Core } from "@walletconnect/core";
import { WalletKit } from "@reown/walletkit";

const core = new Core({
  projectId: process.env.PROJECT_ID,
});

const walletkit = await WalletKit.init({
  core, // <- pass the shared `core` instance
  metadata: {
    name: "Demo app",
    description: "Demo Client as Wallet/Peer",
    url: "www.walletconnect.com",
    icons: [],
  },
  payConfig: {
     appId: "<your WCP ID >",
     // or
     apiKey: "<your linked WCP Api Key>",
  }
});

Payment Link Detection

Use isPaymentLink to determine if a scanned URI is a payment link or a standard WalletConnect pairing URI:

import { isPaymentLink } from "@reown/walletkit";

// Use when handling a scanned QR code or deep link
if (isPaymentLink(uri)) {
  // Handle as payment (see below)
  await processPayment(uri);
} else {
  // Handle as WalletConnect pairing
  await walletkit.pair({ uri });
}

Payment Flow

The payment flow consists of six main steps:

Detect Payment Link -> Get Options -> Collect Data (if required) -> Get Actions -> Sign Actions -> Confirm Payment

1. Get Payment Options

   Retrieve available payment options for a payment link:

   const options = await walletkit.pay.getPaymentOptions({
     paymentLink: "https://pay.walletconnect.com/...",
     accounts: ["eip155:1:0x...", "eip155:8453:0x..."],
     includePaymentInfo: true,
   });

   // options.paymentId - unique payment identifier
   // options.options - array of payment options (different tokens/chains)
   // options.info - payment details (amount, merchant, expiry)

   // Display merchant info
   if (options.info) {
     console.log("Merchant:", options.info.merchant.name);
     console.log("Amount:", options.info.amount.display.assetSymbol, options.info.amount.value);
   }

   // Check which options require data collection (per-option)
   for (const option of options.options) {
     if (option.collectData) {
       console.log(`Option ${option.id} requires info capture`);
     }
   }

2. Collect User Data (If Required)

   After the user selects an option, check for collectData on it. If present, collect the data before fetching the required actions.

   Embedded Data Collection Form

   When a payment requires user information (e.g., for Travel Rule compliance), the SDK returns a collectData field on individual payment options. Each option may independently require data collection — some options may require it while others don’t.

   The form is loaded from selectedOption.collectData.url and embedded in your wallet (a WebView on mobile, an iframe on web). It handles field rendering, validation, Terms & Conditions and Privacy Policy acceptance, and submits data directly to the backend.

   Collect this data before fetching the required actions. For an option that requires Information Capture, getRequiredPaymentActions fails with 400 IC data required until the data has been submitted.

   Recommended Flow

   The recommended approach is to display all payment options upfront, then handle data collection only when the user selects an option that requires it:

   1. Call getPaymentOptions and display all available options to the user
   2. Show a visual indicator (e.g., “Info required” badge) on options where option.collectData is present
   3. When the user selects an option, check selectedOption.collectData
   4. If present, load selectedOption.collectData.url in the embedded form
   5. Optionally append query parameters to the form URL — prefill (known user data), theme, and themeVariables (appearance). See Form URL parameters below. Use proper URL building so existing query parameters are preserved.
   6. Listen for completion messages: IC_COMPLETE (success) or IC_ERROR (failure)
   7. On IC_COMPLETE, continue the flow — fetch the required actions, sign, and confirm the payment. Don’t pass collectedData to confirmPayment(); the form submits data directly to the backend

   Decision Matrix

   Response collectData	option.collectData	Behavior
   present	present	Option requires IC — use option.collectData.url
   present	null	Option does NOT require IC (others might) — skip IC for this option
   null	null	No IC needed for any option

   Form URL parameters

   The form URL accepts the following optional query parameters. Append them to selectedOption.collectData.url before loading it, preserving any existing query parameters.

   Parameter	Format	Description
   prefill	base64url-encoded JSON	Pre-populates known user fields so the user doesn’t re-enter them. Keys must match the required fields from collectData.schema (e.g. fullName, dob, pobAddress).
   theme	light or dark	Sets the form’s base color mode.
   themeVariables	base64url-encoded JSON	Overrides design tokens to match your brand — font, font size, select colors, button border radius, and input border radius. Generate and export this value from the WalletConnect Pay Dashboard.

   collectData.schema is a JSON schema string — parse it and read its required array to discover the field keys for prefill. For example, a required array of ["fullName", "dob", "pobAddress"] maps to a prefill object of {"fullName": "...", "dob": "...", "pobAddress": "..."}.

   Customizing the form appearance

   theme and themeVariables are optional and independent — pass either, both, or neither:

   • theme switches the form between light and dark base color modes. Match it to your wallet’s active mode for a seamless transition.
   • themeVariables applies brand-level overrides (font, font size, select colors, button border radius, and input border radius). Generate the theme in the WalletConnect Pay Dashboard, export it as a base64url string, and append it to the form URL verbatim — you don’t need to encode it at runtime.

   The top-level collectData on the payment options response is still available for backward compatibility. However, the per-option collectData is the recommended approach as it provides more granular control over the flow.

   Do not pass collectedData to confirmPayment() when using the embedded form. The form handles data submission directly.

   if (selectedOption.collectData?.url) {
     // Use the "required" list from selectedOption.collectData.schema to determine which fields to prefill
     const prefillData = {
       fullName: "John Doe",
       dob: "1990-01-15",
       pobAddress: "123 Main St, New York, NY 10001",
     };
     // Encode prefill as base64url (URL-safe, no padding)
     const prefill = btoa(JSON.stringify(prefillData))
       .replace(/\+/g, "-").replace(/\//g, "_").replace(/=+$/, "");

     // Optional appearance params (see "Form URL parameters"):
     //   theme=light|dark — base color mode
     //   themeVariables=<base64url> — exported from the WalletConnect Pay Dashboard
     const themeVariables = "<base64url-exported-from-dashboard>";
     const query = `prefill=${prefill}&theme=dark&themeVariables=${themeVariables}`;
     const separator = selectedOption.collectData.url.includes("?") ? "&" : "?";
     const webViewUrl = `${selectedOption.collectData.url}${separator}${query}`;

     // Show WebView and wait for IC_COMPLETE message
     showDataCollectionWebView(webViewUrl);
   }


   WebView Message Types

   The WebView communicates with your wallet through JavaScript bridge messages. The message payload is a JSON string with the following structure:

   Message Type	Payload	Description
   IC_COMPLETE	{ "type": "IC_COMPLETE", "success": true }	User completed the form successfully. Proceed to payment confirmation.
   IC_ERROR	{ "type": "IC_ERROR", "error": "..." }	An error occurred. Display the error message and allow the user to retry.

   Platform-Specific Bridge Names

   Platform	Bridge Name	Handler
   Kotlin (Android)	AndroidWallet	@JavascriptInterface onDataCollectionComplete(json: String)
   Swift (iOS)	payDataCollectionComplete	WKScriptMessageHandler.didReceive(message:)
   Flutter	ReactNativeWebView (injected via JS bridge)	JavaScriptChannel.onMessageReceived
   React Native	ReactNativeWebView (native)	WebView.onMessage prop

3. Get Required Actions

   Get the wallet RPC actions needed to complete the payment:

   const actions = await walletkit.pay.getRequiredPaymentActions({
     paymentId: options.paymentId,
     optionId: options.options[0].id,
   });

   // actions - array of wallet RPC calls to sign
   // Each action contains: { walletRpc: { chainId, method, params } }

   for (const action of actions) {
     console.log("Chain:", action.walletRpc.chainId);
     console.log("Method:", action.walletRpc.method);
     console.log("Params:", action.walletRpc.params);
   }

4. Sign Actions

   Sign each required action using your wallet’s signing implementation:

   // Sign each action based on its RPC method
   const signatures = await Promise.all(
     actions.map(async (action) => {
       const { chainId, method, params } = action.walletRpc;
       const parsedParams = JSON.parse(params);

       switch (method) {
         case "eth_signTypedData_v4":
           return await wallet.signTypedData(chainId, parsedParams);
         case "eth_sendTransaction":
           return await wallet.sendTransaction(chainId, parsedParams[0]);
         case "personal_sign":
           return await wallet.personalSign(chainId, parsedParams);
         default:
           throw new Error(`Unsupported RPC method: ${method}`);
       }
     })
   );


   Payment options may include multiple actions with different RPC methods. For example, a Permit2 payment where the user lacks sufficient allowance returns two actions: an eth_sendTransaction to approve the token allowance, followed by an eth_signTypedData_v4 to sign the Permit2 transfer. Your wallet must check action.walletRpc.method and dispatch to the appropriate handler. For full implementation guidance, see USDT support.

   Signatures must be in the same order as the actions array.

5. Confirm Payment

   Submit the signatures and collected data to complete the payment:

   const result = await walletkit.pay.confirmPayment({
     paymentId: options.paymentId,
     optionId: options.options[0].id,
     signatures,
     collectedData, // Optional, if collectData was present
   });

   // result.status - "succeeded" | "processing" | "failed" | "expired"
   // result.isFinal - whether the payment is complete
   // result.pollInMs - if not final, poll again after this delay

   if (result.status === "succeeded") {
     console.log("Payment successful!");
   } else if (result.status === "processing") {
     console.log("Payment is processing...");
   } else if (result.status === "failed") {
     console.log("Payment failed");
   }


Data Collection Implementation

When selectedOption.collectData.url is present, display the URL in a WebView using react-native-webview. Install the dependency:

npm install react-native-webview@13.16.0

Data Collection Best Practices

• Display prominently: Show the form full-screen or as a prominent modal so users can interact with it easily
• Loading indicator: Show a loading indicator while the form loads
• Handle errors: Listen for IC_ERROR messages and display a user-facing error message with an option to retry
• External links: Open Terms & Conditions and Privacy Policy links in the system browser rather than navigating within the form
• Domain restriction: Only allow navigation to WalletConnect pay domains and HTTPS URLs
• Back navigation: Handle back/dismiss gracefully — confirm cancellation with the user before closing the form mid-flow
• Keyboard behavior: Test that the soft keyboard appears and behaves correctly when users tap on form inputs
• Theme to match your brand: Pass theme=light or theme=dark to match your wallet’s active color mode, and apply brand tokens with themeVariables exported from the WalletConnect Pay Dashboard. See Form URL parameters.

import React, { useCallback } from "react";
import { WebView } from "react-native-webview";
import { Linking, View, ActivityIndicator } from "react-native";

function PayDataCollectionWebView({ url, onComplete, onError }) {
  const handleMessage = useCallback(
    (event) => {
      try {
        const data = JSON.parse(event.nativeEvent.data);
        switch (data.type) {
          case "IC_COMPLETE":
            onComplete();
            break;
          case "IC_ERROR":
            onError(data.error || "Unknown error");
            break;
        }
      } catch {
        // Ignore non-JSON messages
      }
    },
    [onComplete, onError]
  );

  const handleNavigationRequest = useCallback((request) => {
    if (!request.url.includes("pay.walletconnect.com")) {
      Linking.openURL(request.url);
      return false;
    }
    return true;
  }, []);

  return (
    <WebView
      source={{ uri: url }}
      onMessage={handleMessage}
      onShouldStartLoadWithRequest={handleNavigationRequest}
      javaScriptEnabled
      domStorageEnabled
      startInLoadingState
      renderLoading={() => (
        <View style={{ flex: 1, justifyContent: "center", alignItems: "center" }}>
          <ActivityIndicator size="large" />
        </View>
      )}
    />
  );
}

function buildFormUrl(baseUrl, options = {}) {
  const params = [];
  if (options.prefill && Object.keys(options.prefill).length > 0) {
    // base64url: URL-safe, no padding
    const prefill = btoa(JSON.stringify(options.prefill))
      .replace(/\+/g, "-").replace(/\//g, "_").replace(/=+$/, "");
    params.push(`prefill=${prefill}`);
  }
  if (options.theme) params.push(`theme=${options.theme}`);
  if (options.themeVariables) params.push(`themeVariables=${options.themeVariables}`);
  if (params.length === 0) return baseUrl;
  const separator = baseUrl.includes("?") ? "&" : "?";
  return `${baseUrl}${separator}${params.join("&")}`;
}

Complete Example

Here’s a complete implementation example:

import { Core } from "@walletconnect/core";
import { WalletKit, isPaymentLink } from "@reown/walletkit";

class PaymentManager {
  constructor() {
    this.walletkit = null;
  }

  async initialize(projectId) {
    const core = new Core({ projectId });

    this.walletkit = await WalletKit.init({
      core,
      metadata: {
        name: "My Wallet",
        description: "A crypto wallet",
        url: "https://mywallet.com",
        icons: ["https://mywallet.com/icon.png"],
      },
    });
  }

  async handleScannedUri(uri) {
    if (isPaymentLink(uri)) {
      await this.processPayment(uri);
    } else {
      await this.walletkit.pair({ uri });
    }
  }

  async processPayment(paymentLink) {
    const walletAddress = "0xYourAddress";

    try {
      // Step 1: Get payment options
      const options = await this.walletkit.pay.getPaymentOptions({
        paymentLink,
        accounts: [
          `eip155:1:${walletAddress}`,
          `eip155:8453:${walletAddress}`,
          `eip155:137:${walletAddress}`,
        ],
        includePaymentInfo: true,
      });

      if (options.options.length === 0) {
        throw new Error("No payment options available");
      }

      // Step 2: Let user select an option (simplified - use first option)
      const selectedOption = options.options[0];

      // Step 3: Collect data via WebView if required — must happen BEFORE
      // fetching the required actions, otherwise the backend rejects the request
      if (selectedOption.collectData?.url) {
        await this.showDataCollectionWebView(selectedOption.collectData.url);
      }

      // Step 4: Get required actions
      const actions = await this.walletkit.pay.getRequiredPaymentActions({
        paymentId: options.paymentId,
        optionId: selectedOption.id,
      });

      // Step 5: Sign all actions
      const signatures = await Promise.all(
        actions.map((action) => this.signAction(action, walletAddress))
      );

      // Step 6: Confirm payment
      const result = await this.walletkit.pay.confirmPayment({
        paymentId: options.paymentId,
        optionId: selectedOption.id,
        signatures,
      });

      return result;
    } catch (error) {
      console.error("Payment failed:", error);
      throw error;
    }
  }

  async signAction(action, walletAddress) {
    const { chainId, method, params } = action.walletRpc;
    const parsedParams = JSON.parse(params);

    switch (method) {
      case "eth_signTypedData_v4":
        return await wallet.signTypedData(chainId, parsedParams);
      case "eth_sendTransaction":
        return await wallet.sendTransaction(chainId, parsedParams[0]);
      case "personal_sign":
        return await wallet.personalSign(chainId, parsedParams);
      default:
        throw new Error(`Unsupported RPC method: ${method}`);
    }
  }
}

API Reference

WalletKit Pay Methods

Pay methods are accessed via walletkit.pay.*.

Utility Functions

Function	Description
isPaymentLink(uri: string): boolean	Check if URI is a payment link (imported from @reown/walletkit)

Instance Methods (walletkit.pay)

Method	Description
getPaymentOptions(params)	Fetch available payment options
getRequiredPaymentActions(params)	Get signing actions for a payment option
confirmPayment(params)	Confirm and execute the payment

Parameters

GetPaymentOptionsParams

interface GetPaymentOptionsParams {
  paymentLink: string;      // Payment link URL
  accounts: string[];       // CAIP-10 accounts
  includePaymentInfo?: boolean;  // Include payment info in response
}

GetRequiredPaymentActionsParams

interface GetRequiredPaymentActionsParams {
  paymentId: string;        // Payment ID from getPaymentOptions
  optionId: string;         // Selected option ID
}

ConfirmPaymentParams

interface ConfirmPaymentParams {
  paymentId: string;        // Payment ID
  optionId: string;         // Selected option ID
  signatures: string[];     // Signatures from wallet RPC calls
}

Response Types

PaymentOptionsResponse

interface PaymentOptionsResponse {
  paymentId: string;        // Unique payment identifier
  info?: PaymentInfo;       // Payment information
  options: PaymentOption[]; // Available payment options
  collectData?: CollectDataAction;  // Data collection requirements
  resultInfo?: PaymentResultInfo;   // Transaction result details (present when payment already completed)
}

interface PaymentResultInfo {
  txId: string;             // Transaction ID
  optionAmount: PayAmount;  // Token amount details
}

PaymentOption

interface PaymentOption {
  id: string;               // Option identifier
  amount: PayAmount;        // Amount in this asset
  etaS: number;             // Estimated time to complete (seconds)
  actions: Action[];        // Required signing actions
  collectData?: CollectDataAction;  // Per-option data collection (undefined if not required)
}

Action

interface Action {
  walletRpc: WalletRpcAction;
}

interface WalletRpcAction {
  chainId: string;          // CAIP-2 chain ID (e.g., "eip155:8453")
  method: string;           // RPC method (e.g., "eth_signTypedData_v4", "eth_sendTransaction")
  params: string;           // JSON-encoded parameters
}

ConfirmPaymentResponse

interface ConfirmPaymentResponse {
  status: PaymentStatus;    // Payment status
  isFinal: boolean;         // Whether status is final
  pollInMs?: number;        // Suggested poll interval
  info?: PaymentResultInfo; // Transaction result details (present on success)
}

type PaymentStatus =
  | "requires_action"
  | "processing"
  | "succeeded"
  | "failed"
  | "expired"
  | "cancelled";

PaymentInfo

interface PaymentInfo {
  status: PaymentStatus;    // Current payment status
  amount: PayAmount;        // Requested payment amount
  expiresAt: number;        // Expiration timestamp (seconds since epoch)
  merchant: MerchantInfo;   // Merchant details
  buyer?: BuyerInfo;        // Buyer info if available
}

interface MerchantInfo {
  name: string;             // Merchant display name
  iconUrl?: string;         // Merchant logo URL
}

PayAmount

interface PayAmount {
  unit: string;             // Asset unit
  value: string;            // Raw value in smallest unit
  display: AmountDisplay;   // Human-readable display info
}

interface AmountDisplay {
  assetSymbol: string;      // Token symbol (e.g., "USDC")
  assetName: string;        // Token name (e.g., "USD Coin")
  decimals: number;         // Token decimals
  iconUrl?: string;         // Token icon URL
  networkName?: string;     // Network name (e.g., "Base")
}

CollectDataAction

interface CollectDataAction {
  /** WebView URL for data collection */
  url: string;
  /** JSON schema describing required fields */
  schema?: string;
}

Error Handling

Handle errors gracefully in your payment flow:

try {
  const options = await walletkit.pay.getPaymentOptions({
    paymentLink,
    accounts,
  });
} catch (error) {
  if (error.message.includes("payment not found")) {
    console.error("Payment not found");
  } else if (error.message.includes("expired")) {
    console.error("Payment has expired");
  } else {
    console.error("Payment error:", error);
  }
}

Best Practices

1. Use WalletKit Integration: If your wallet already uses WalletKit, prefer this approach for automatic configuration

2. Use isPaymentLink() for Detection: Use the utility function instead of manual URL parsing for reliable payment link detection

3. Account Format: Always use CAIP-10 format for accounts: eip155:{chainId}:{address}

4. Multiple Chains: Provide accounts for all supported chains to maximize payment options

5. Signature Order: Maintain the same order of signatures as the actions array

6. Error Handling: Always handle errors gracefully and show appropriate user feedback

7. Loading States: Show loading indicators during API calls and signing operations

8. Expiration: Check paymentInfo.expiresAt and warn users if time is running low

9. User Data: Only collect data when collectData is present in the response and you don’t already have the required user data. If you already have the required data, you can submit this without collecting from the user. You must make sure the user accepts WalletConnect Terms and Conditions and Privacy Policy before submitting user information to WalletConnect.

10. WebView Data Collection: When selectedOption.collectData.url is present, display the URL in a WebView using react-native-webview rather than building native forms. The WebView handles form rendering, validation, and T&C acceptance.
